“CARBON

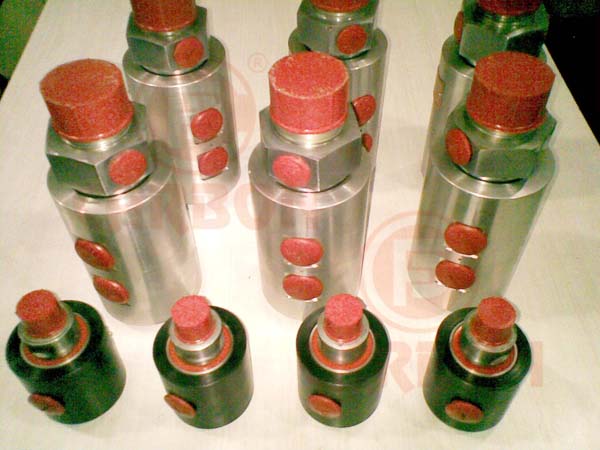

“ Brand 600 D Series Rotary Unions
“CARBON
SIZE :
3/4″ BSP to 2″ BSP
3/4″ BSP to 2″ BSP
THREADED ROTOR :
AS PER ISO 228 / NPT / Metric
#Optional : QUICK RELEASE ROTOR [FLANGED END]
TEMPERATURE (Max) :
Upto : 150° C
PRESSURE (Max) :
Up to : 400 BAR
SPEED (Max) :
Up to – 250 RPM
MEDIA :
Hydraulic Oil.
| Parts | Material |
| Housing | Alluminium / Steel |
| Rotor | Steel / Stainless Steel |
| Syphone Pipe | Steel / Stainless Steel |
| Circlip | Standard |
| Washer | Standard |
| Seals | Dynamic / PTFE / Buna N / Viton |
